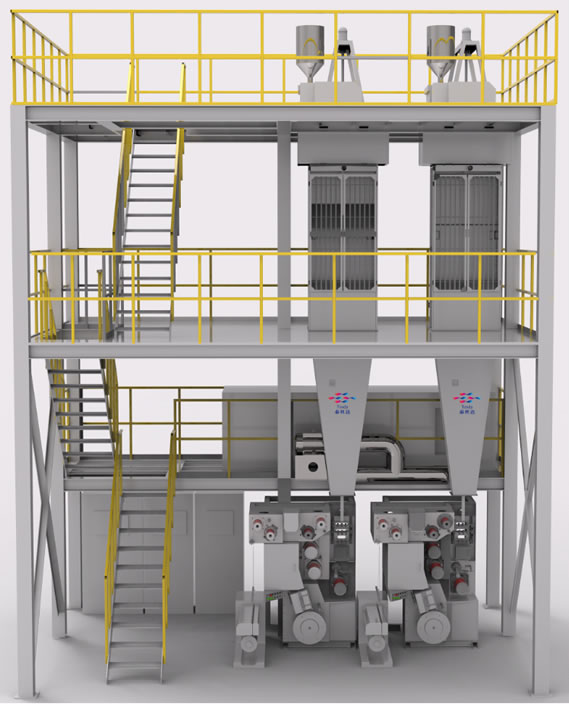

PET/PTT (T500)-BCF spinning machine

Source:Suzhou Tesda Intelligent Technology Co., Ltd.





main feature



1. Modified polyester ECDP (E: Easy C: Cationic D: Dyeing P: PET) The biggest feature is that it changes the dyeing rate and vividness. Because the raw materials are cheap and the performance can be close to nylon, the carpet products produced are favored by the market!



2. PTT fiber is a high-quality polyester fiber produced with terephthalic acid and 1.3 propylene glycol as raw materials. In addition to excellent flexibility and elastic recovery, PTT fiber also has excellent wrinkle resistance, dimensional stability, and Weatherability, stain resistance, dyeability and good barrier properties. Due to the special molecular chain conformation of PTT fiber and excellent tensile resilience, the hot air crimping process can be used to produce highly bulky BCF carpet yarn.


specification




project data
Machine model TW3500/T3
polymer PET(DCEP)
Size range/number of holes 600-4000d/68-144f
DPF range 3-40
Spinning method Screw melt spinning
Drying device Continuous crystal drying
Digits Monochrome 2, 4, 6 bits
Head count 2, 3, 4 heads
Filter form Continuous filtration without stopping
Spinneret design Rectangle, circle
Tow cooling method Side blow
Heat roller size φ190*330mm
Heat roller cooling and lubrication Oil cooling, oil mist lubrication
Deformation system Friction blade
Cooling drum φ400mm Air-cooled
Network unit Have
Winding speed 1500-3200m/min
