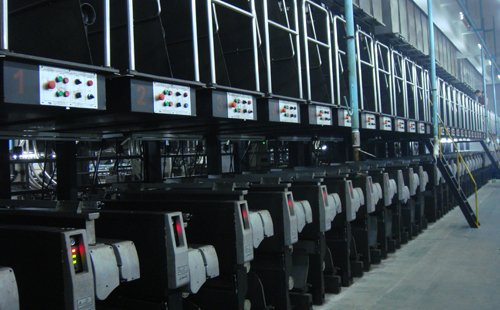

Polyester POY spinning machine

Source£ºSuzhou Tesda Intelligent Technology Co., Ltd.







main feature:

1) The machine is suitable for veneer or fiber spinning technology, with up to 24 heads per head;

2) Use of new energy-saving spinning box, which saves 25% energy than ordinary spinning box;
3) The use of advanced bottom-loaded cup-shaped components improves the uniformity of the melt flow in the components, and the temperature of the plate is uniform, while reducing
  Labor intensity;
4) Improved module and spinneret structure to improve fiber density uniformity after fiber splitting

5) The wind speed of the new type side blowing system is uniform and stable, and the fiber strip is dry well.
6) Equipped with high-quality full-automatic rewinding and winding head, with extremely high switching success rate and excellent bottom wire unwinding and tailing performance;

Winding in parallel with 2 or more winding heads is convenient and fast.




specification:



project

unit

parameter

Final titer / hole number

Dtex

33-330/12-144F

Monofilament fineness

Dtex

0.3-1.0 0.8-4.5

Winding speed

m/min

2500-3500

Spinning method



Screw spinning or direct spinning method

Heads per head



8¡¢10¡¢12¡¢16¡¢20¡¢24

Spinneret diameter

mm

¦Õ50-¦Õ115

Component type



Bottom cup, twin components

Tow quenching method



Side blowing, ring blowing

Oiling method



Grease the oil nozzle or oil tanker

Guide plate size

mm

¦Õ160¡Á150

Winding head



Fully automatic / semi-automatic winding head
