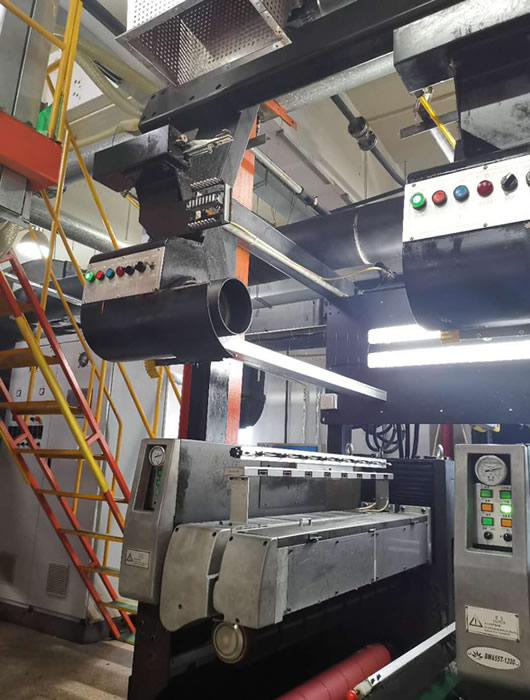

Nylon POY spinning machine

Source:Suzhou Tesda Intelligent Technology Co., Ltd.



main feature
1. Imported screw extruder or domestic bimetal screw and barrel, greatly increasing the service life;

2. Energy-saving spinning box, special for nylon 66, with cup-shaped components for easy disassembly and cleaning.

3. Specially designed single suction device and superheated steam injection system, especially suitable for PA-6 fine denier spinning requirements;

4. New type side blowing system, the wind speed is even and stable, and the tow is dry;

5. Equipped with high-quality full-automatic winding head, high switching success rate and good unwinding and tailing performance of the bottom wire.



specification





project

data

Final titer / hole number

22-330D/6-144F

Monofilament fineness

1.0 -4.0D

Winding speed

highest5000 m/min

Spinning method

Slice spinning

Heads per head

81012

Spinneret

Ø75- Ø110 mm

Component

Bottom Cup

Quench method

Side blow

Guide wire disk

Ø160 mm

Oiling method

Grease the oil nozzle or tanker

Winding head

Automatic winding head
